Elevate Platform Lifts | Echo

Elevate Platform Lifts Echo Platform Lift | Up to 2m Travel Height & Wheelchair Access

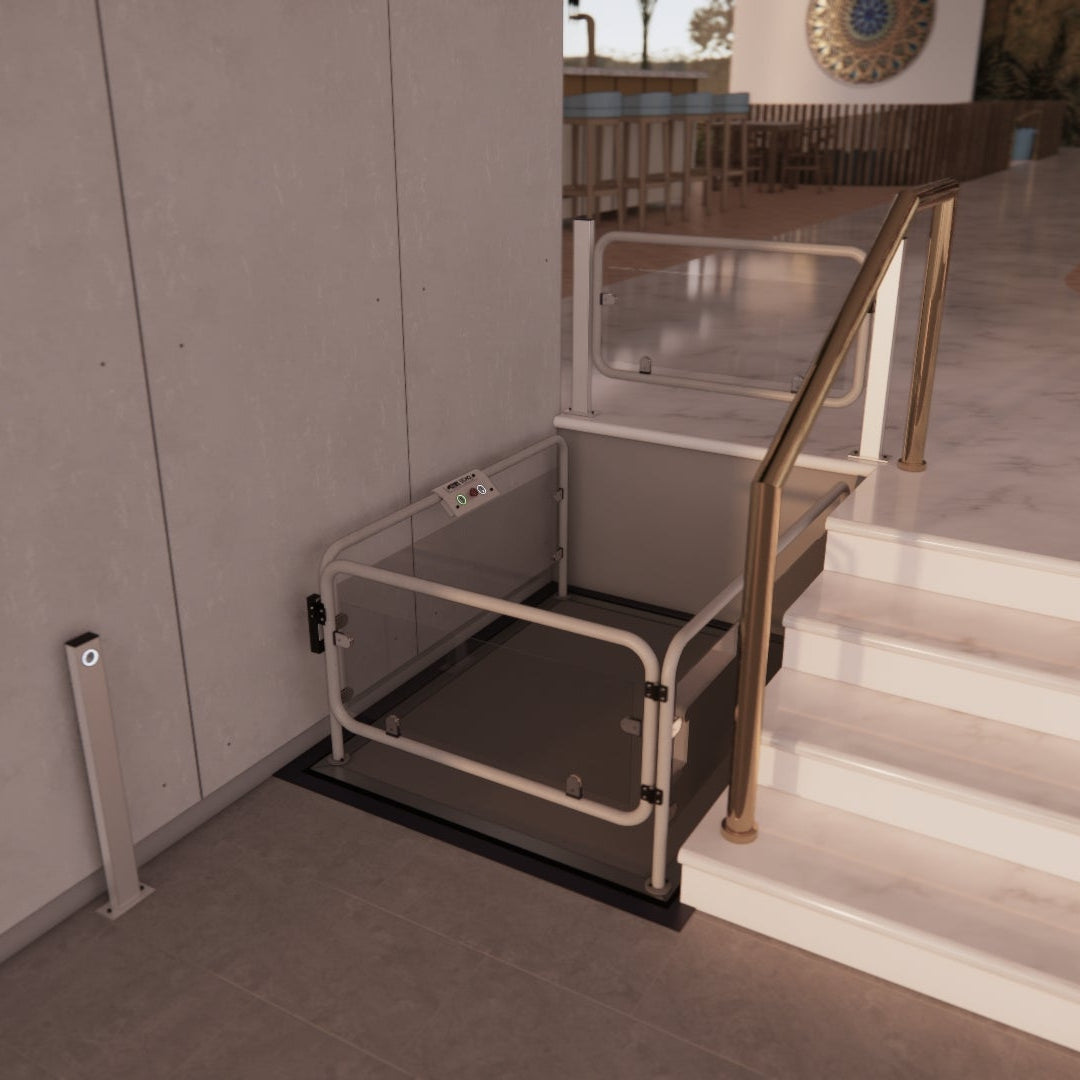

The Elevate Echo Vertical Platform Lift provides a practical and reliable accessibility solution for overcoming level changes of up to 2 metres. Designed for both indoor and outdoor environments, the Echo provides smooth vertical access for wheelchair and mobility equipment users while maintaining a compact, modern appearance that can complement a wide range of settings.

Built with a durable steel frame, toughened glass and an anti-slip platform, the Echo combines safety, durability and ease of use. Entry can be provided through level access or a ramp, while the user-friendly illuminated controls make operating the lift simple and straightforward. Upper and lower call buttons allow the platform to be summoned from either level, providing convenient access whenever required.

The Echo uses advanced hydraulic technology to provide smooth and controlled vertical movement. Multiple driving modes allow the lift to be tailored to the installation requirements, while the secure bolt lock and latch system keeps the gate firmly closed during operation. An emergency stop button provides an additional safety feature, allowing the lift to be stopped immediately when required.

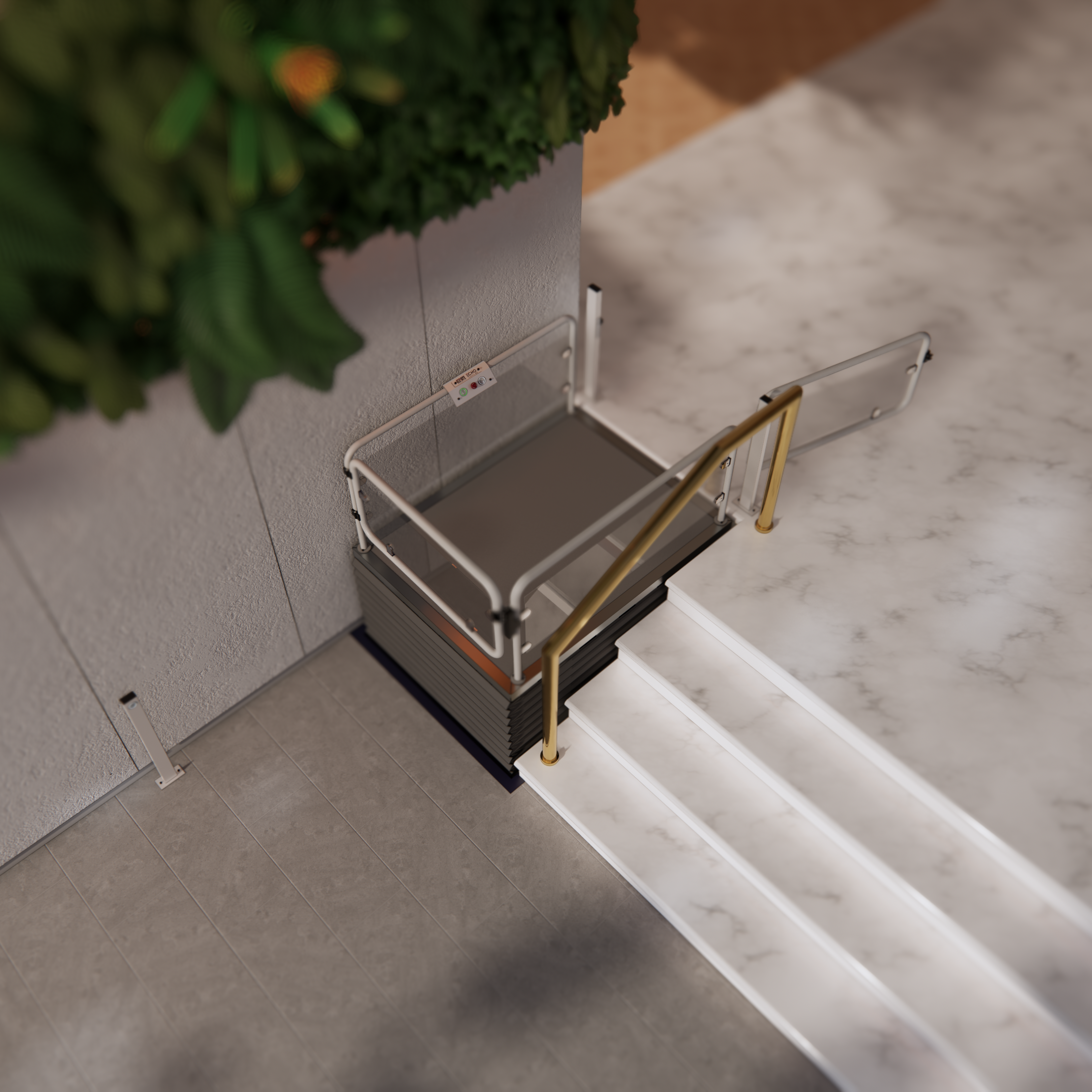

A flexible bellows mechanism cover expands and contracts as the lift operates, helping to prevent objects from becoming caught within the mechanism. Once the platform reaches the upper level, the user can exit easily through the gate, providing a straightforward transition between levels.

Designed for long-term use, the Echo features robust construction incorporating premium steel, tempered glass and industrial-grade hinges. Its combination of practical accessibility features, durable materials and contemporary styling makes it a versatile choice for wheelchair and mobility access where a vertical rise of up to 2 metres is required.

Key Features

• Up to 2m Travel Height: Provides access between different levels.
• Indoor & Outdoor Use: Suitable for various environments.
• Wheelchair Accessible: Designed for wheelchair and mobility equipment users.
• Hydraulic Operation: Provides smooth, controlled movement.
• Anti-Slip Platform: Provides secure footing.
• Toughened Glass: Durable and modern finish.
• Easy Controls: Simple illuminated controls.
• Call Buttons: Controls available at both levels.

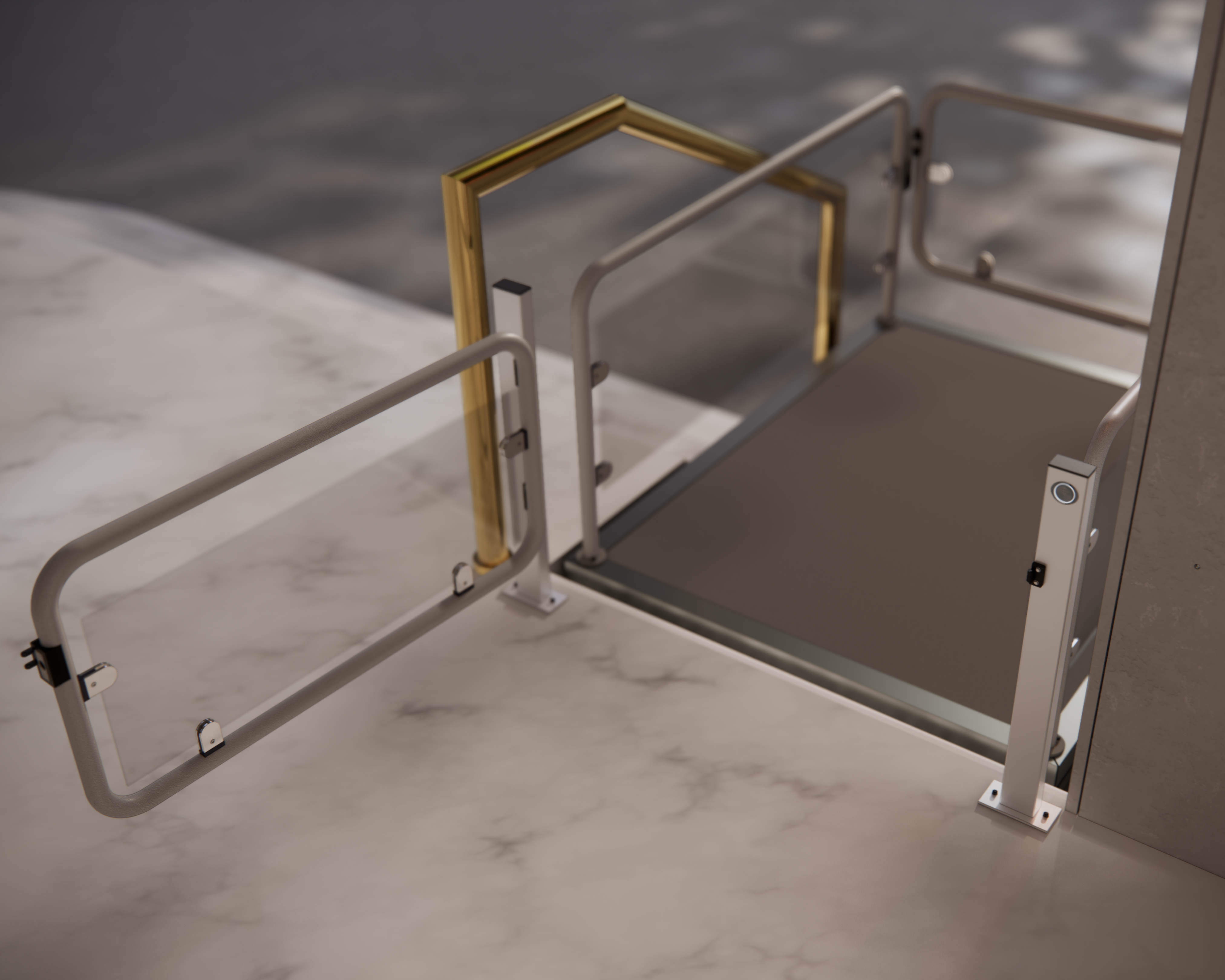

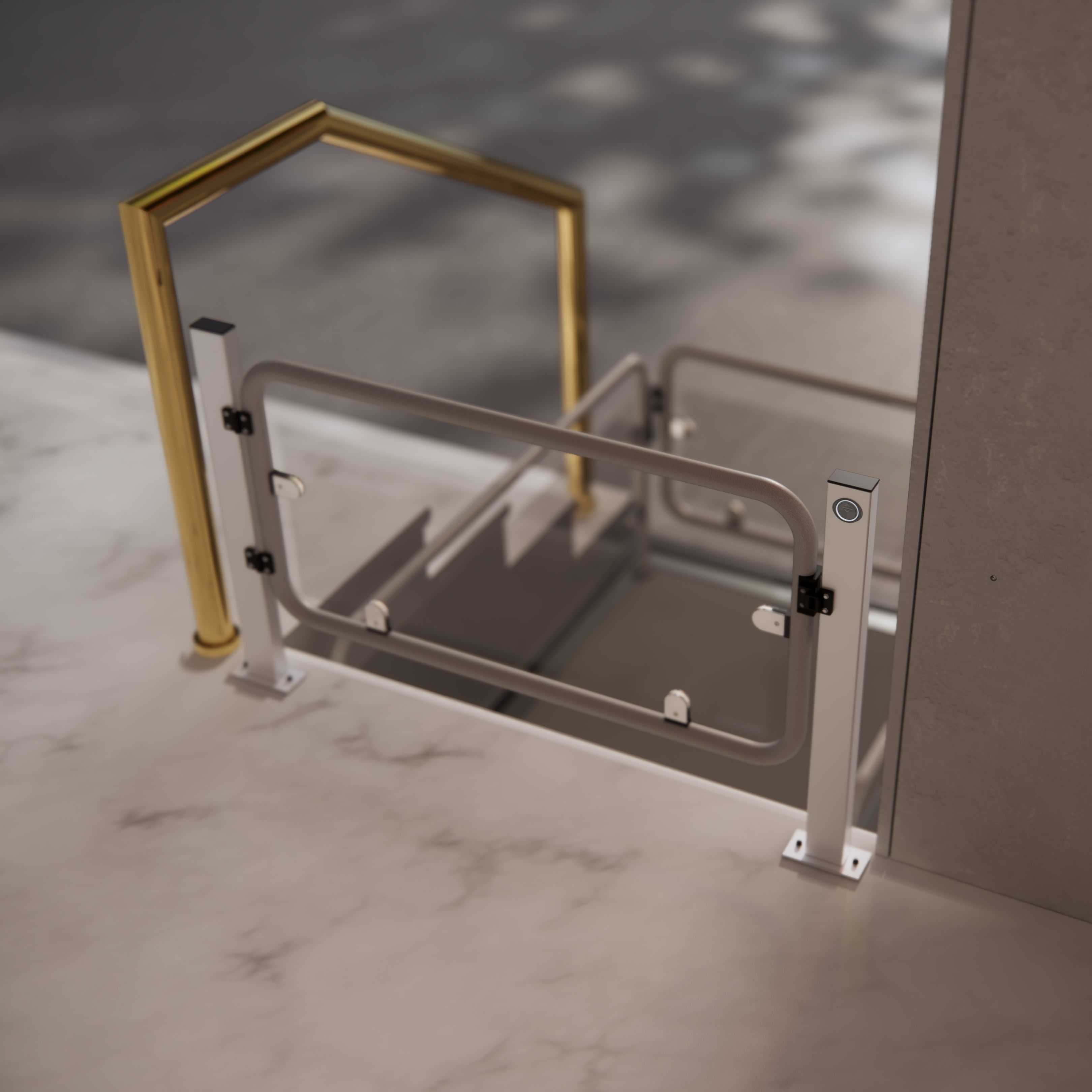

• Safety Gate: Secure locking system during travel.
• Emergency Stop: Quickly stops the lift when needed.
• Bellows Cover: Helps protect the lifting mechanism.
• Durable Construction: Robust steel and tempered glass design.

What's Included?

• 1030 mm x 1330 mm sub-platform dimensions
• PVC coated non-slip floor
• Manual folding lower ramp
• 220v Powerpack Unit
• 1050 mm travel distance
• 225 kg load capacity
• Upper level door
• Protected black bellows
• RAL 9006 silver (space grey)

Downloads

Brochure

Warranty

This product comes with a 3-year manufacturer's warranty covering parts only.
