Prism Medical | CP200 Portable Hoist Package - Free Standing

Introducing the Prism Free Standing Gantry and Portable Hoist Package – An Affordable and Versatile Mobility Solution.

This package allows you to save on your purchase and brings you a combination of practicality and convenience.

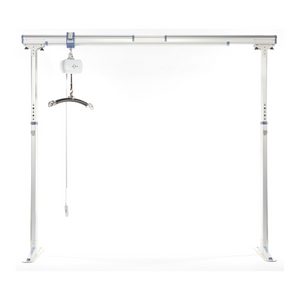

The Free Standing Gantry System offers stability and safety in scenarios where fixed hoists are unavailable or when a portable solution is necessary, making it perfect for home care and travel.

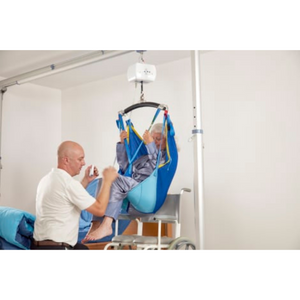

It can be effortlessly assembled without tools, accommodating either one or two users. With a generous safe working load of 200 kg, it ensures both the patient and caregiver experience secure and dignified transfers, from bed to chair and vice versa.

The Prism CP200 Portable Track Hoist complements this package with its exceptional versatility and cost-effectiveness.

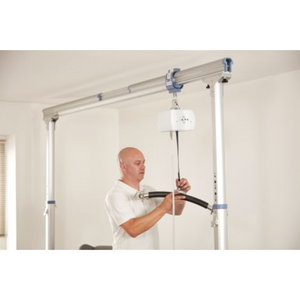

This portable hoist can be swiftly detached and used with other fixed or gantry systems, thanks to its quick-release mechanism. Compact and quiet, it includes a start/stop function for user comfort and offers up to 60 lifts on a single charge.

With a safe working load of 200 kg, it's designed to facilitate lifting and transfers with ease. Its lightweight aluminium construction (4.5 kg) makes it ideal for travel, ensuring the elderly and disabled can maintain their mobility and independence.

Invest in this package for a complete and practical solution for your care home or personal mobility needs.

Key Features

Prism FSG200 Features:

• Robust Design: Lightweight, high-strength aluminium construction supports up to 200kg (31 stone 6lb), ensuring durability and reliability.

• Versatile Adjustability: Track length adjustable from 1.9 – 2.85m and height from 2.14-2.51m to fit various room sizes and ceiling heights.

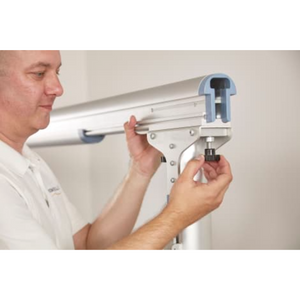

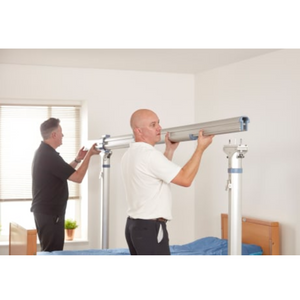

• Tool-Free Installation: Simple and quick setup, recommended for two people, with a ratchet system for secure installation and levelling bubbles for precise adjustments.

• Enhanced Safety: Features a safety latch on uprights and floor-level adjusters for increased stability and security.

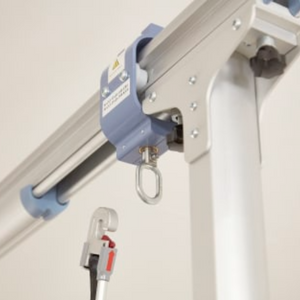

• Ease of Use: Easy-slide trolley for smooth movement along the track, aiding in safe and comfortable patient transfers.

• Extended Warranty: Comes with a standard 5-year warranty for added assurance.

CP200 Features:

• Lightweight Build: Aluminium chassis with a unit weight of only 4.5kg (excluding carry bar).

• High Weight Capacity: Suitable for transferring patients up to 200kg (440lb).

• User-Friendly Controls: Intuitive hand controller for lifting, lowering, and emergency operations.

• Efficient Power Management: Auto-off feature for battery preservation, providing 50-60 lifts per charge.

• Convenient Storage and Charging: Integrated wall dock and charger included.

• Quick Release System (QRS): Allows for efficient setup and removal of the reacher and carry bar.

• Track System Compatibility: Works with Prism Medical tracks using the included Trolley Set.

• Informative LED Indicators: Display battery status, operational alerts, and error warnings.

Overall Benefits:

• Portability and Adaptability: Ideal for varying environments due to its portability and compatibility with different track systems.

• Cost-Effectiveness: More affordable than permanent installations, without compromising on functionality.

• Patient Comfort and Dignity: Ensures comfortable and dignified patient handling and movement.

• Versatile Fitting Options: Comes with a choice of carry bars to suit different operational needs and preferences.

Specification

 CP200 Hoist Specification

Max Safe Working Load	200kg
Hoist Case	Non Flammable ABS Plastic
Length	208mm
Width	177mm
Height	149mm
Weight (Hoist only)	4.5kg
Rail Transfer	Manual
Hoisting Range	Up to 2100mm
Lifting Speed (unloaded)	35mm/s
Lifting Speed (100 kg loaded)	25mm/s
Charger Input	100-240V
Charger Output	24V – 1.33 amps
Emergency Stop	Electric
Hand Control	Electric 3 (Button)
Batteries	2 x 12V – 3.3Ah Nimh
In Track Charging	Not Available
Removable from Track	Yes
Duty Cycle	15% use, 85% rest
